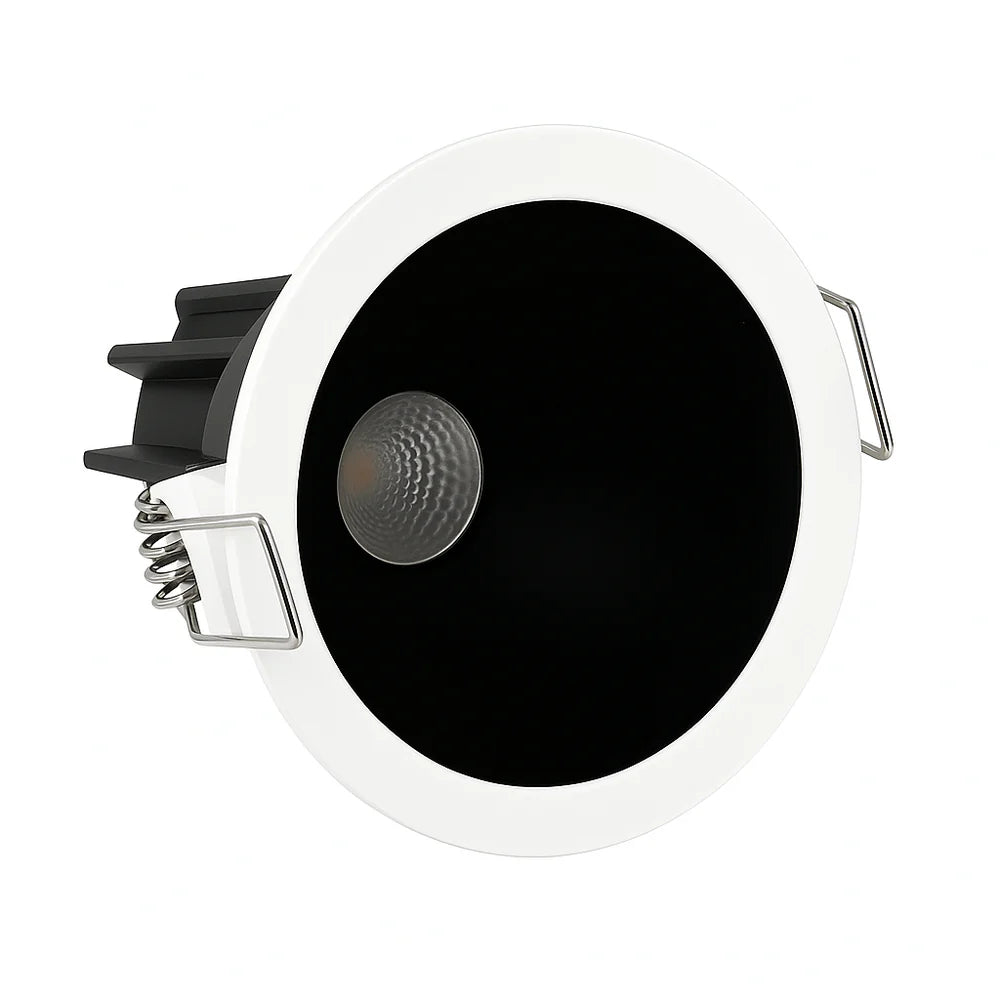

CDG-US Black Reflector 9W (3″) Deep Anti-Glare Full Spectrum LED Downlight | 90–140V | 4/12 Pack | 5CCT Adjustable | 24° Beam | White Housing | CRI>97 | Architectural Recessed Lighting
About this item
- Architectural Recessed Design: Designed for architectural recessed lighting applications, this 9W downlight delivers a clean ceiling finish and refined visual appearance for residential, retail, hospitality, and commercial interiors.
- High CRI Performance: Full-spectrum COB LED technology with CRI>97 provides accurate color rendering and natural visual comfort, making it suitable for spaces where color quality and ambience matter.
- Deep Anti-glare Optical System: The deeply recessed light source helps reduce direct glare while maintaining focused illumination, creating a comfortable lighting experience for everyday use and accent lighting.
- Reflector Geometry Design: The slanted reflector cup with black inner wall improves glare control and supports a clean 24° beam distribution for precise architectural lighting effects.
- Premium Lighting Quality: Features 5CCT adjustable color temperature (2700K / 3000K / 3500K / 4000K / 5000K), flicker-free operation, TRIAC dimming compatibility, and stable 90–140V performance for reliable long-term use.
Package Included
| Wattage & Pack Size | Package Included |

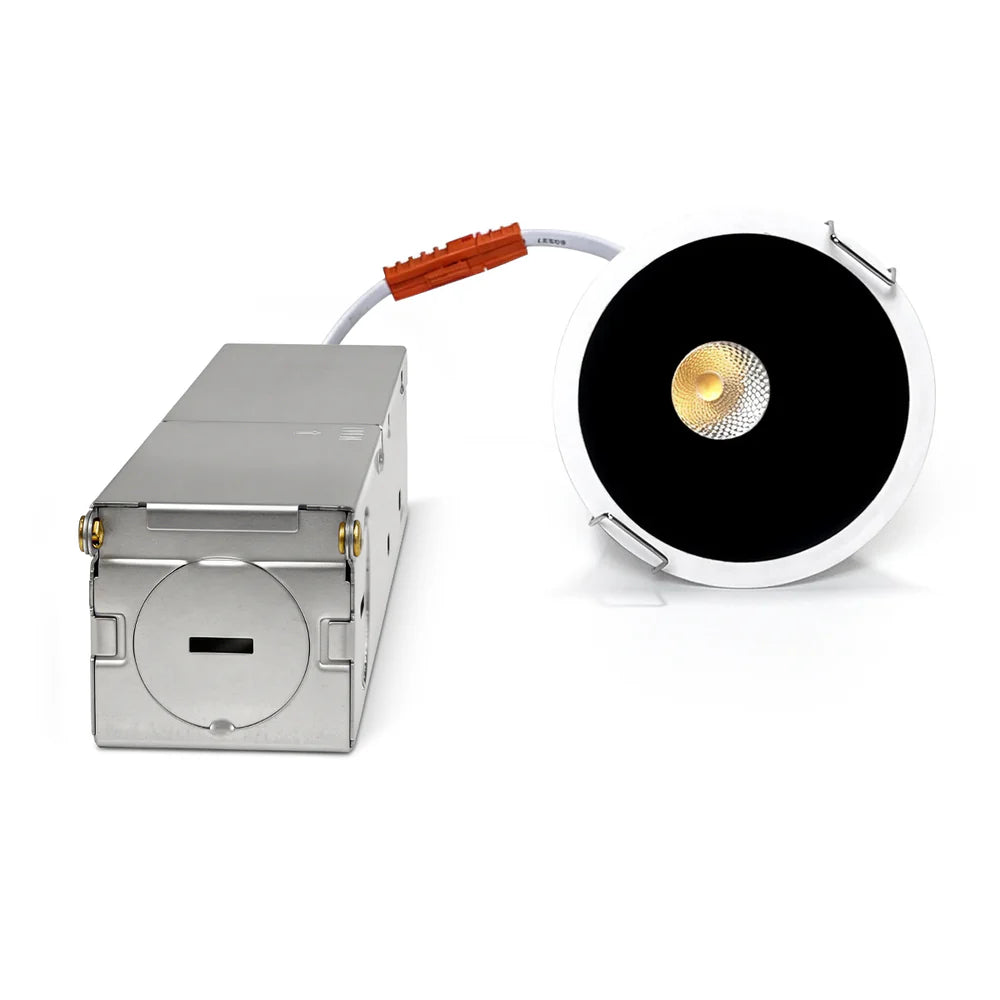

| 9W – 4 Pack | 4 × Deep Anti-Glare LED Downlights 4 × TRIAC Dimmable LED Drivers 1 × User Manual |
| 9W – 12 Pack | 12 × Deep Anti-Glare LED Downlights 12 × TRIAC Dimmable LED Drivers 1 × User Manual |
Order & Logistics
- Lead Time: Usually ships within 1–3 business days from local warehouses. If local inventory is unavailable, fulfillment from HQ within 10–15 business days.
- Packing: Protective cardboard box with individual foam compartments
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Wattage: 9W
- Voltage: 90–140V AC
- Beam Angle: 24°
- Color Temperature: 5CCT Adjustable (2700K–5000K)
- CRI: >97 Full Spectrum
- Housing: White aluminum housing with black anti-glare reflector
- Dimming: Compatible with TRIAC dimmers (10–100%)
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications
| Item | Specification |
| Product Name | CDG-US Black Reflector Deep Anti-Glare Full Spectrum LED Downlight |
| Wattage (Cut-out Size) | 9W (3″) |
| Housing | White aluminum housing with black anti-glare reflector |
| Optical Structure | Deep anti-glare design; slanted reflector cup with black inner wall |
| Light Source Type | Full-spectrum COB, 5CCT Adjustable |
| Beam Angle | 24° |
| Cutout Size | Ø75 mm (3″) |
| Product Size | D81 × H85 mm |
| Input Voltage | AC 90–140V |
| Dimmable | TRIAC dimmable |
| Color Temperature | 5CCT selectable, 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >97 |
| Light Efficacy | 70 lm/W |

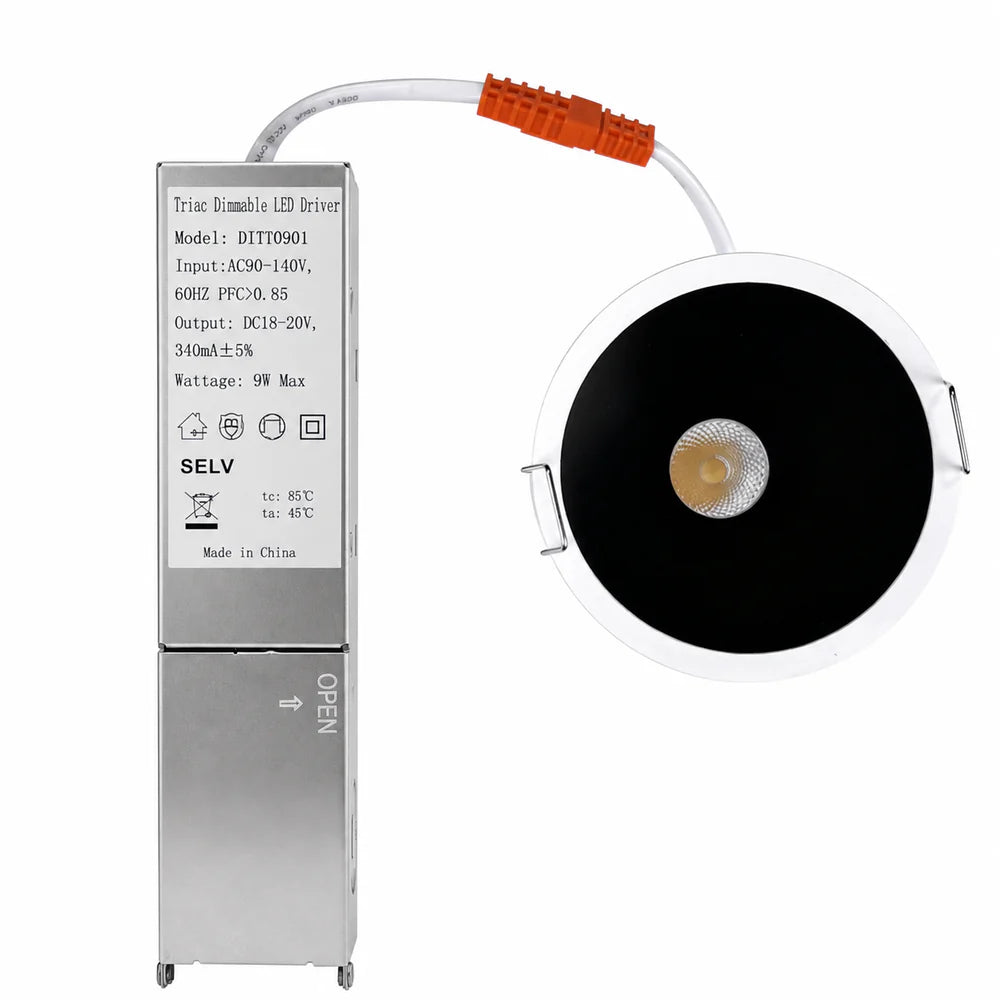

| Driver / Power Supply | Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver; AC 90–140V |
| Flicker | Flicker-free |
| Blue Light | Low blue light |
| Installation Type | Recessed ceiling mount |
| Application | Accent lighting with deep anti-glare performance for residential and commercial interiors |
| Use Environment | Indoor use only |
Usage Notes / Installation Tips
- Ensure the power supply is turned off before installation or maintenance.
- Confirm the 3″ cut-out size and ceiling thickness before mounting.
- Use the built-in switch to select your preferred CCT before installation.
- Pair with a compatible TRIAC dimmer for smooth brightness adjustment.
- Suitable for dry and damp indoor environments; avoid direct water contact.
Applications
- Commercial: retail stores, boutiques, galleries, and offices
- Hospitality: hotels, restaurants, cafes, and lounges
- Residential: living rooms, dining areas, kitchens, and corridors
- Architectural & Display Lighting: focused illumination with anti-glare comfort
